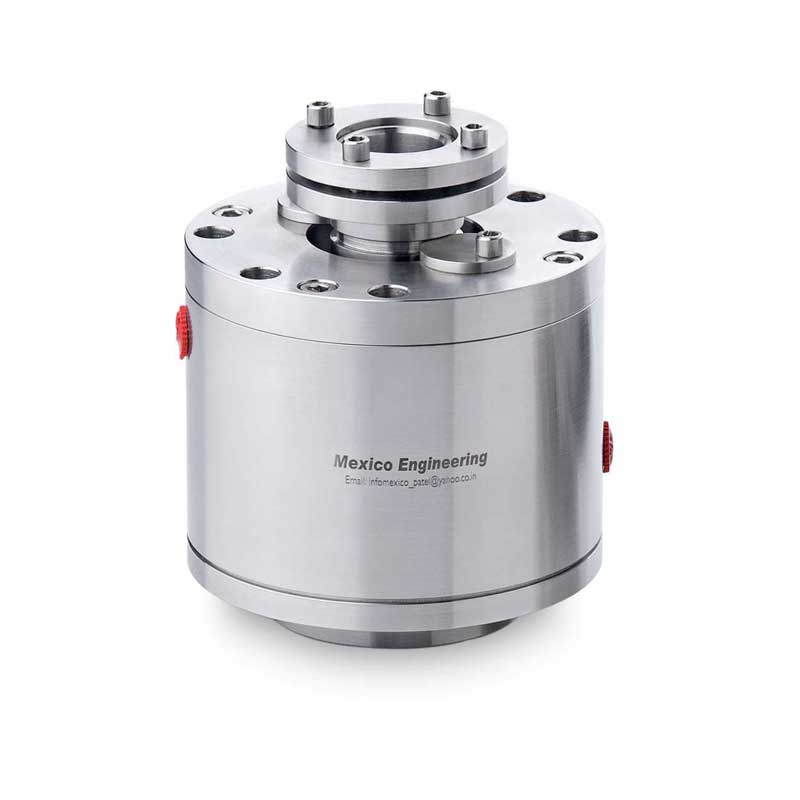

Dual Back to Back Seal – Series 12WS

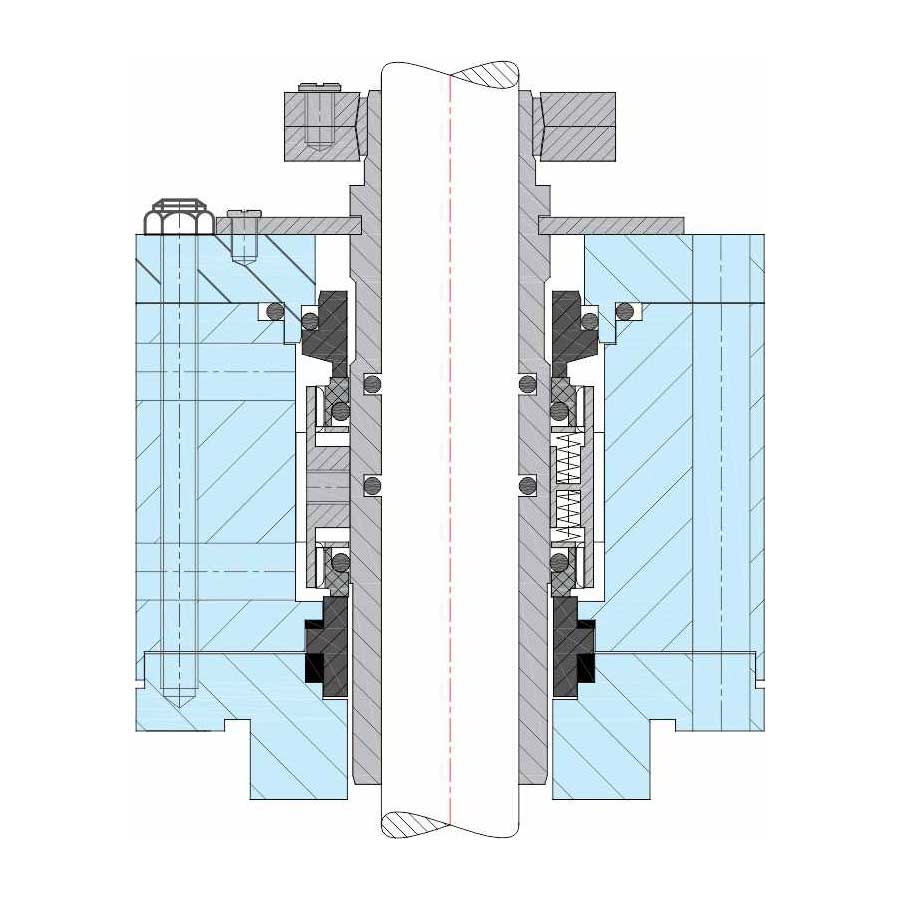

Series 12WS seals employ dual balanced multispring seals with dynamic ‘O’-ring of bigger cross section for higher reliability. Seal ring is of heavy duty design and stationary face is hydraulically balanced to avoid accidental pop-up.
Seal features
- Double back to back seal
- Cartridge type seal
- Unbalanced
Applications
- Paper Industries
- Pharmaceutical Industries
- General chemicals and its vapours
Operating limit
- Seal size : 25 mm to 120mm
- Pressure : Under Vacuum to 15 kg/cm2
- Temp : ambt.…. to 200°C
- Speed : 250 rpm
Material
- Seal face : Carbon, Silicon Carbide, Ceramic, TC
- Secondary sealing : Viton, GFT, PTFE, TTV, FEP
- Metal Components : SS 316, Hastelloy-c, Alloy-20
