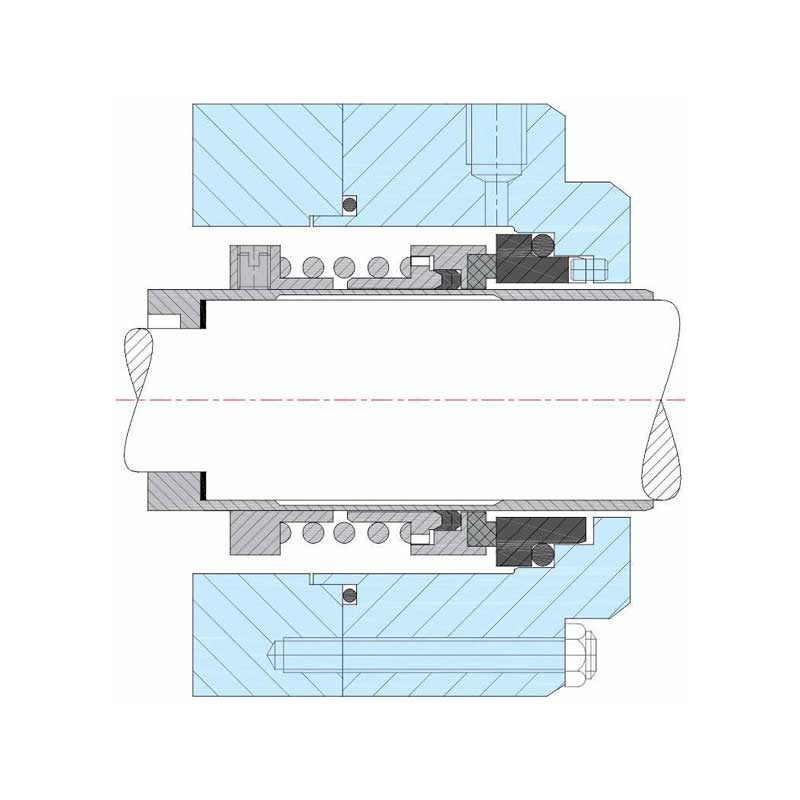

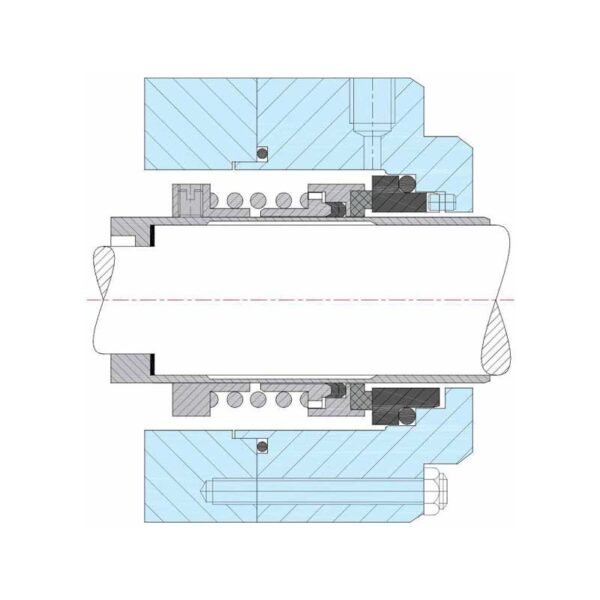

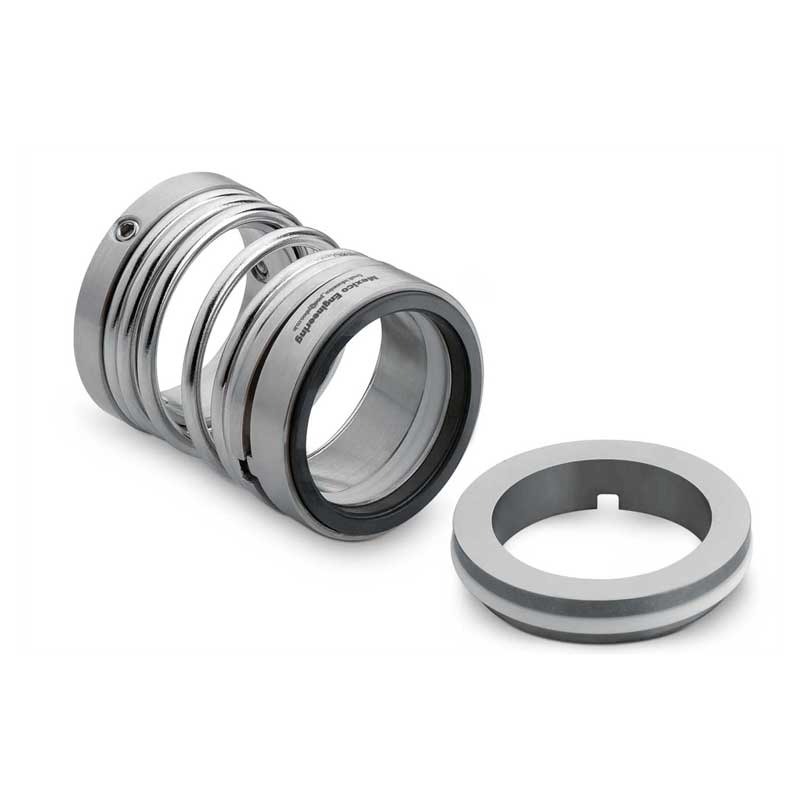

Single Coil Spring Unbalanced Seal – Series 14V
Series 14V are single coil spring unbalanced seals designed for dirty media and clogging type application. These seal are not effected by the direction of shaft rotation, as it is driven by lugs. The PTFE double V-Packing’s help to get perfect dynamic sealing. These seal are ideal to minimize the stock as the seal components are interchangeable.
Seal features
- Single seal
- Inside mounted
- Unbalanced
Applications
- Petrochemicals
- General Chemical
- Light hydrocarbons
- Refineries
Operating limit
- Seal size : 14 mm to 90mm
- Pressure : 10 kg/cm2
- Temp : -30°C…. to 150°C
- Speed : up to 20 m/s
Material
- Seal face : Carbon, ceramic, silicon tungsten carbide,
- Secondary sealing : Viton, GFT, PTFE, Aflas
- Metal parts : SS316 , Hastelloy c, Alloy-20
